Formation of cold filaments in cooling flow clusters

1er décembre 2007

How hot gas in galaxy clusters (with temperature higher than 100 millions degrees) may cool and flow towards the cluster center in order to feed the central galaxy ? A team of astronomers from Paris Observatory proposes a new scenario, taking advantage of the jets emitted by the central active galactic nuclei (AGN). Very high resolution numerical simulations allowed to understand the formation of the puzzling filaments of cool gas, observed in the atmosphere of galaxy clusters, like Perseus. Those filaments result from the cooling of hot gas, trapped in the wake of plasma bubbles formed by the central AGN. This gas, dragged at higher radius, has time to cool down to relatively low temperature (below 10 000 degrees) and to fall back, forming filamentary structures. The mass and the kinematics of the predicted filaments are in excellent agreement with the observations.

The first X-rays observations in the 70’s revealed that galaxy clusters are dominated by diffused very hot gas (more that 10 millions degrees). At these temperatures, the hot gas loses a huge amount of energy by thermal emission and cools. In the most massive clusters, the electronic density is so high, that the cooling time of the hot gas is much smaller that the age of the universe. Under these conditions, the gas is not in hydrostatic equilibrium and flows slowly towards the galactic center. These clusters are named "cooling flow clusters". If theory predicts large amounts of cooling gas, observations fail to find as much gas as predicted in the temperature range between one and 10 millions degrees, leading to a difficult problem. A solution to this problem could be the quenching or damping of the cooling due to the heating produced by the central active galactic nuclei (AGN). An AGN is effectively present at the center of all cooling flow clusters.

Recent observations of H-alpha emission of relatively cold gas (10 000 degrees) and very cold gas (tens of degrees) traced by the emission of the CO molecule, showed that gas with low temperature is present in the atmosphere of those clusters. However, the gas mass derived from these observations is 10 times below the predictions of the simpler model (without AGN). The spatial distribution of this gas is surprising (see Fig. 1). The gas forms filamentary structures, spread all around the cluster center.

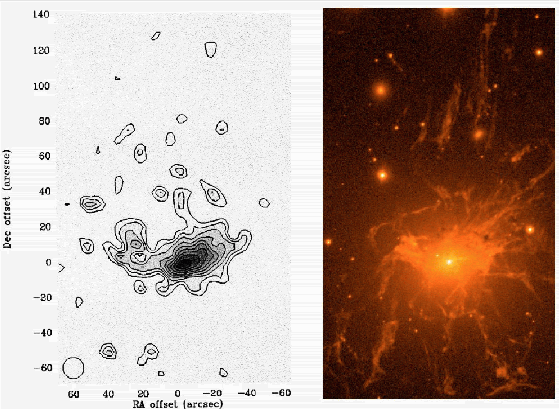

Figure 1 : A droite : image en émission H-alpha de l’amas de Persée (gaz à 10 000 degrés). A gauche : contours de l’émission de la molécule CO traçant le gaz très froid (des dizaines de degrés) dans ce même amas. Le gaz très chaud, émétteur de rayons-X, baigne l’ensemble, et n’est pas représenté ici. Cliquer sur l’image pour l’agrandir

But the link between the cluster cooling and the presence of the cold gas if far from obvious. Those filaments are very extended (more that 200 000 light years for the longest) and cross regions with cooling times differing by more than an order of magnitude. Moreover, those filaments have a peculiar velocity, indicating that they are stretching (the gas seems to raise at the top of the filaments, while it is falling and being accelerated more and more near the cluster center).

Using numerical simulations (N-body/hydrodynamics) at very high resolution, it has been possible to propose a coherent scenario at the origin of the cold filaments. The central AGN generates a supersonic jet, blowing up plasma bubbles of very high temperature (hotter than 100 millions degrees). Those hotter but less dense bubbles (compared to the ambient plasma), migrate upwards, due to the Archimede’s force. During the migration, a fraction of the ambient gas is dragged by the bubbles at higher radius.

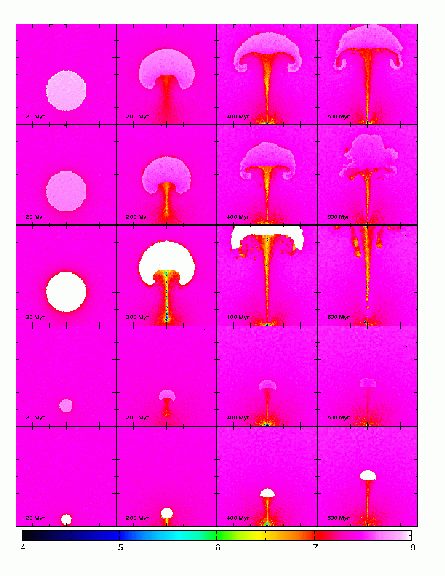

Figure 2 : Evolution de 5 différentes bulles de plasma dans le milieu chaud intra-amas. Chaque ligne représente un modèle différent, le temps augmentant de la gauche vers la droite. Lors de leur migration vers le haut, les bulles entraînent du gaz qui se refroidit rapidement à plus haute altitude formant des structures filamentaires sous les bulles. Sur ce graphe, les couleurs représentent le logarithme de la température (selon la palette de couleurs en bas). Le gaz froid (100 millions de degrés) est représenté en blanc. La taille de chaque image est de 450 mille années-lumière. Cliquer sur l’image pour l’agrandir

During the migration that lasts more than 600 million years, this gas which cools relatively rapidly (in 400 million years) , has time to cool below one million degrees. At this temperature it is no longer supported by the pressure and consequently falls towards the cluster center, forming a filamentary structure below the bubble (see Fig. 2). The increase of its density reinforces its cooling and its temperature quickly falls below 10 000 degrees. The observed stretching of the filaments is well reproduced by the simulations. The top of the filament is still entrained by the bubble and moves away from the center, while the bottom is nearly in free fall towards the center.

In summary, if the central AGN provides heating and contributes to the global quenching of the cluster cooling, it is also responsible for the production of cold gas in outlying regions.

The team is composed of : Yves Revaz (1), Françoise Combes (1), Philippe Salomé (2) (1) LERMA, Observatoire de Paris ; (2) IRAM, Grenoble
