Supersonic winds in Titan’s upper atmosphere

15 avril 2019

An international team led by researchers from the LESIA obtained the first direct measurement of the wind speed in the upper atmosphere of Titan using the ALMA interferometer. The study, which is published in Nature Astronomy on April 15 2019, shows that a supersonic equatorial eastward wind is blowing at a speed of 350 m/s at an altitude of 1000 km. The origin of such strong wind still needs to be explained.

Titan, the biggest moon of Saturn, rotates slowly on itself with a 16 Earth’s day period, while its atmosphere, which extends up to 1500 km, rotates in the same direction but much more quickly. For instance, at an altitude of 300 km the zonal winds that blow eastward parallel to the equator can reach a speed of 200 m/s. Their rotation period around Titan’s axis is then only about 24h. This situation – called atmospheric super-rotation – is observed on only to bodies in the solar system : Venus and Titan. Modelers think that it is caused by the combined effect of a solar-driven meridional circulation, forming high-latitude jets, and propagating waves, transporting angular momentum equatorward. The Cassini spacecraft, which observed Titan from 2004 to 2017 did not carry any instrument dedicated to the wind measurements. Indirect measurements of wind speed could still be obtained from the temperature fields (determined from the analysis of the thermal emission of the atmosphere) and their seasonal changes were determined up to 400 km. But above this altitude, the wind regime was up to now very poorly known.

How is the wind speed measured in the upper atmosphere ?

Thanks to the unprecedented spectral and spatial resolution of the ALMA interferometer, researchers now have access to a direct and precise measurement of the wind speed. This makes use of the Doppler shift of the lines emitted at submm wavelengths by the numerous molecules present in Titan’s atmosphere.

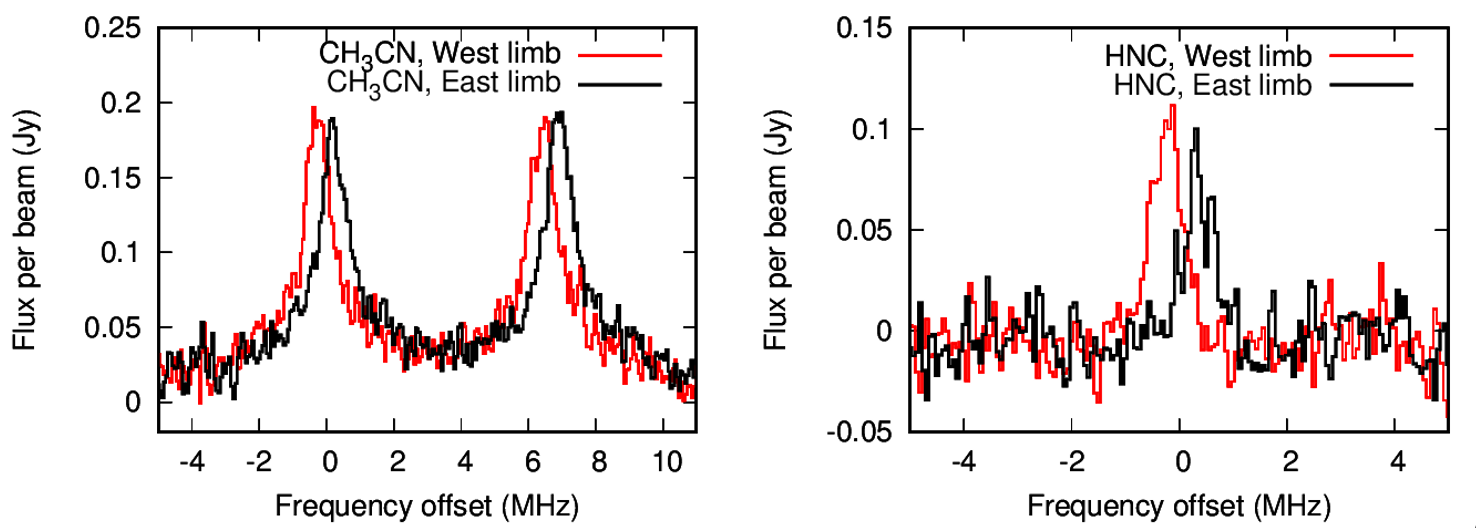

Figure 1:Décalage Doppler observé entre les limbes Ouest (en rouge) et Est (en noir) de la région équatoriale pour deux raies de CH3CN (l’une centrée à 349.44699 GHz, correspondant au zéro de l’échelle en fréquence) et une raie de HNC (isomère de HCN, centrée à 362.63030 GHz). Le décalage des spectres entre les 2 limbes est dû à des vents rapides tournant dans le même sens que la surface de Titan.

The researchers used data with sufficient spatial resolution to map the disk of Titan (1 arcsec including its atmosphere) and even isolate the limb emission. They analyzed the emission lines and their Doppler shifts for six molecules : HCN, DCN, CH3CN, CH3CCH, HC3N et HNC. The derived wind maps obtained from each molecule show strong prograde(1) winds varying from 250 to 350 m/s and with different structures from one molecule to another.

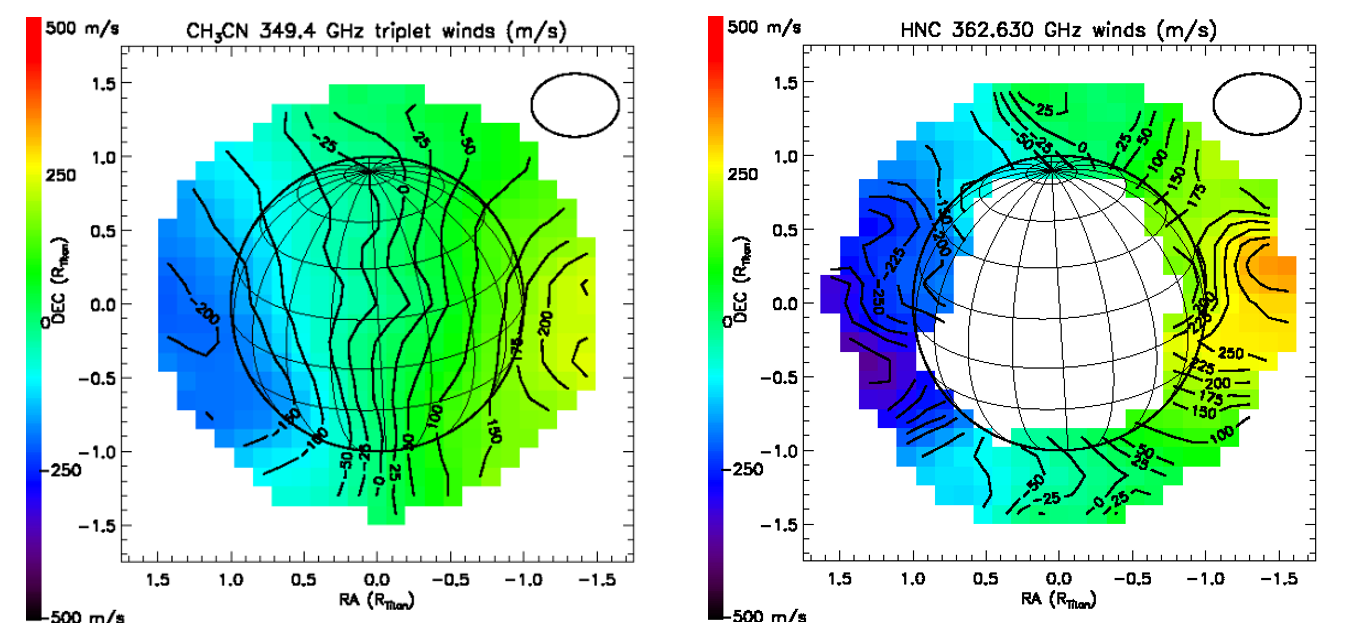

Figure 2 : Cartes des vents mesurés à partir des décalages Doppler de CH3CN (à gauche) et HNC (à droite). La distance est exprimée en rayon de Titan. La couleur bleue indique des vents qui s’approchent de nous et la couleur jaune-orangée des vents qui s’éloignent. Les vents mesurés à partir de CH3CN montrent une asymétrie hémisphérique avec des vents plus forts dans l’hémisphère sud (en automne) que dans l’hémisphère nord. Les vents mesurés à partir de HNC présentent au contraire une structure localisée autour de l’équateur dont la vitesse atteint 350 m/s, soit 1.4 fois la vitesse du son !

Where do these strong winds occur in the atmosphere ?

Modelling of the line shape and its intensity provides molecular abundance vertical profiles, which in turns permits to assign altitudes from which the emission – and therefore the wind - comes from. As each of the six studied molecules probes a different altitude region, it is possible to derive for the first time the vertical profile of the wind speed from 300 km to 1000 km above the surface. This profile shows winds that regularly increase with altitude.

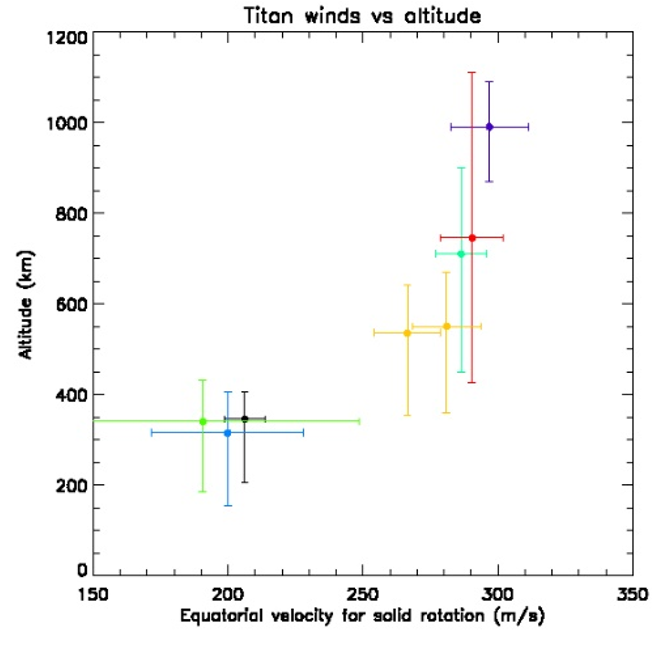

Figure 3 : Vitesses des vents équatoriaux mesurés à partir des décalages Doppler des raies de chacune des molécules étudiées : HNC (violet), HCN (rouge et jaune), HC3N (turquoise), CH3CN (noir), DCN (vert) et CH3CCH (bleu). Les gammes d’altitude sondées pour chacune de ces molécules sont indiquées par les barres verticales. La vitesse équatoriale équivalente du vent croît avec l’altitude, passant d’environ 200 m/s à 300 km à 300 m/s à 1000 km.

What is the cause of the winds ?

The existence of 350 m/s zonal equatorial winds in Titan’s thermosphere (above 600 km) was totally unexpected based on density measurements from Cassini, and its physical origin remains to elucidate. Pre-Cassini models predicted a thermospheric wind regime blowing from the day side toward the night side, like on Venus. But the Cassini mission measured temperatures in the Titan thermosphere : no correlation between the temperature, latitude, longitude nor solar insolation were found, which suggests that the temperature in this region is not controlled by the UV solar flux absorption. The measured fast wind speeds therefore can’t be explained by the solar heating of the upper atmosphere.

Can the energy source of this wind be linked to the impact of ions and electrons coming from Saturn and transported in its magnetosphere ? The magnetospheric plasma that rotates with Saturn impacts Titan at a speed of 120 km/s. This drives convection in Titan’s ionosphere, perhaps ultimately generating winds in the neutral upper atmosphere from the collision of ions with neutral molecules. However, these magnetospheric winds are unlikely to penetrate the atmosphere below 1000 km.
Perhaps more likely, a source « from below » is to be envisaged. Indeed, waves produced in the stratosphere in response to the diurnal variation of the solar insolation can propagate toward the upper atmosphere. These gravity waves, which were observed by Cassini-Huygens and from the ground, could transfer momentum from the deepest atmospheric layers towards the upper atmosphere and accelerate equatorial winds. This qualitative scenario still needs to be modeled.

Additional observations to characterize possible wind variability, and theoretical investigations to assess the quantitative plausibility of these mechanisms are urgently needed.

Note
(1) Prograde winds rotate in the same direction as the rotation of Titan’s surface, they are blowing from West to East for somebody who would be on the surface of Titan.
